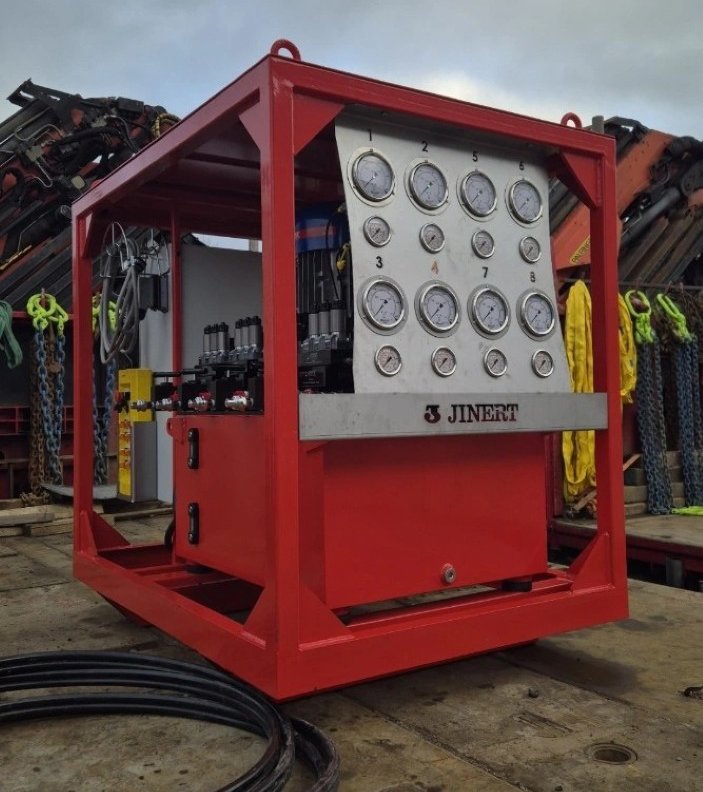

Split flow hydraulic pumps – High flow

FPT SPLIT FLOW HF Series

  • Split-flow High Flow power units enable synchronous lifting and lowering of irregular and unbalanced loads.
  • Designed specifically for synchronous lifting applications with multiple points 4, 6, or 8 lifting points, this split-flow hydraulic unit provides an ideal solution for lifting unbalanced loads while ensuring even load distribution. Its piston pump with independent delivery enables high-precision leveling and precise control, making it particularly suitable for operations requiring synchronized actuation of multiple cylinders.
  • Compatible with double-acting hydraulic cylinders for synchronous lifting and lowering, achieving an accuracy of ±3% of the nominal stroke when equipped with a counterbalance (overcenter) valve.
  • Compatible with single-acting hydraulic cylinders for synchronous lifting, achieving an accuracy of ±3% of the nominal stroke, with synchronous operation during lowering obtained through manual control.
  • High Flow version to garantee the maximum speed and control during operations
PRODOTTO NUOVO. MANCA IL TESTO GENERICO

Custom-made solutions
The hydraulic power unit can be fully customized to meet specific customer requirements, allowing tailored configurations to perfectly fit unique operational needs and application constraints.

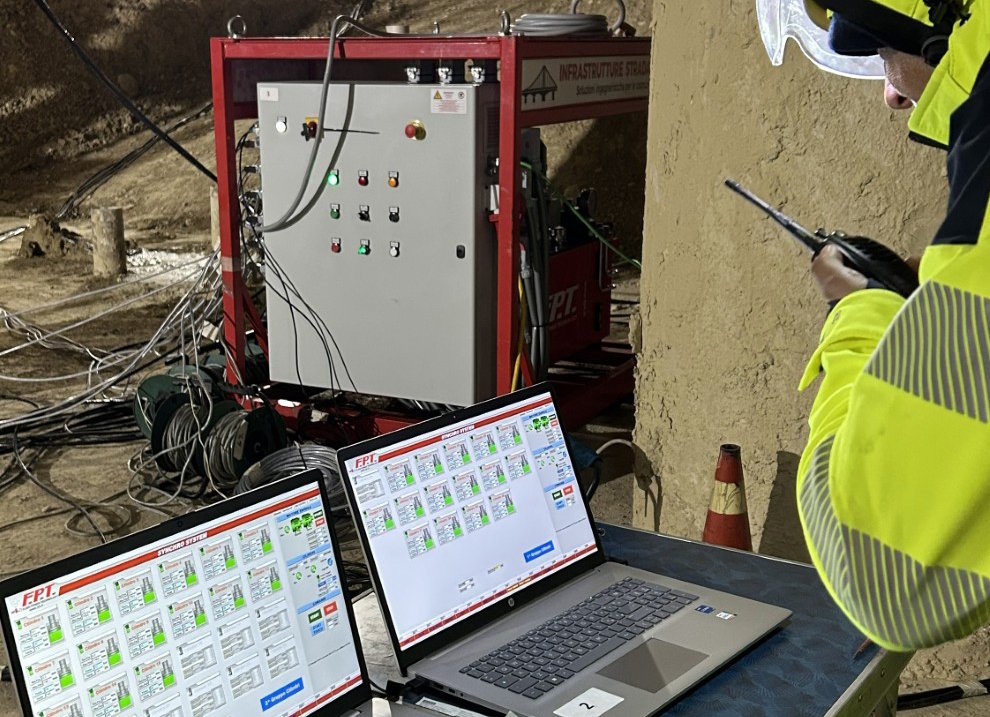

When higher precision is required, use the Synchro System
When extreme precision is required, the Synchro system represents the optimal solution. Engineered with a fully integrated PLC control architecture and entirely managed via PC by the operators, it guarantees positioning accuracy up to 1 mm. The system allows full supervision, real-time parameter adjustment, and continuous data monitoring throughout the operation. This advanced configuration ensures a level of control and precision that significantly exceeds conventional systems. The Synchro system is specifically designed for applications where precise alignment, controlled load distribution, and high operational reliability are critical.

DA AGGIUNGERE UN BOX QUA (UNO LUNGO CON FOTO O PIÚ DI UNO SENZA FOTO)

For further technical details and specifications, download the dedicated catalogue page for this product using the button below.
