Pressure gauges

MD Series

  • Excellent precision and readability, easy to install: pressure gauges suitable for in-line or on-board installation on hydraulic circuit.
  • Pressure gauges for all non-corrosive fluids attemperatures between -20 and +80 °C, compatible with copper and its alloys (always indicate theutilized fluid).
  • Precision amplifier movement in brass. Dial in stove-enameled aluminum; welds in tin alloy.
  • EN 837 harmonized standards adopted as reference criteria.
  • Dust-tight and protected against water jets, suitable for outdoor use.
  • Pressure gauges with dual pressure reading scale (bar – ton) can be supplied.
Download catalogue
High pressure glycerine gauges – 1% accuracy class. To measure the pressure in the cylinder or in the hydraulic system. Also used in test and trial applications. Equipped with safety valve and pressure compensation membrane.

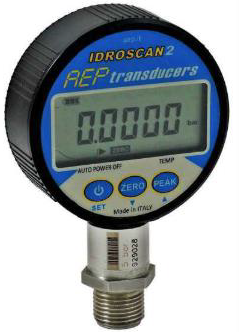

Digital pressure gauges
Available in 0–1000 bar and 0– 2000 bar ranges with ±0.2% accuracy and peak function. Digital versions up to 4000 bar available on request.

Minimess
Minimess male (code 09299SMK20G1/2) and female (code 09299SMD20G1/2) adapters for quick assembly/disassembly of pressure gauge are included in our product range.

Pressure gauge calibrations
Calibration report,carried out with a LATcertified pressure gauge, is available on request (code CERT.MAN): the pressure gauge under test is compared against our certified reference gauge. Calibration certificates issued by ACCREDIA can be supplied.

For further technical details and specifications, download the dedicated catalogue page for this product using the button below.

Download catalogue
