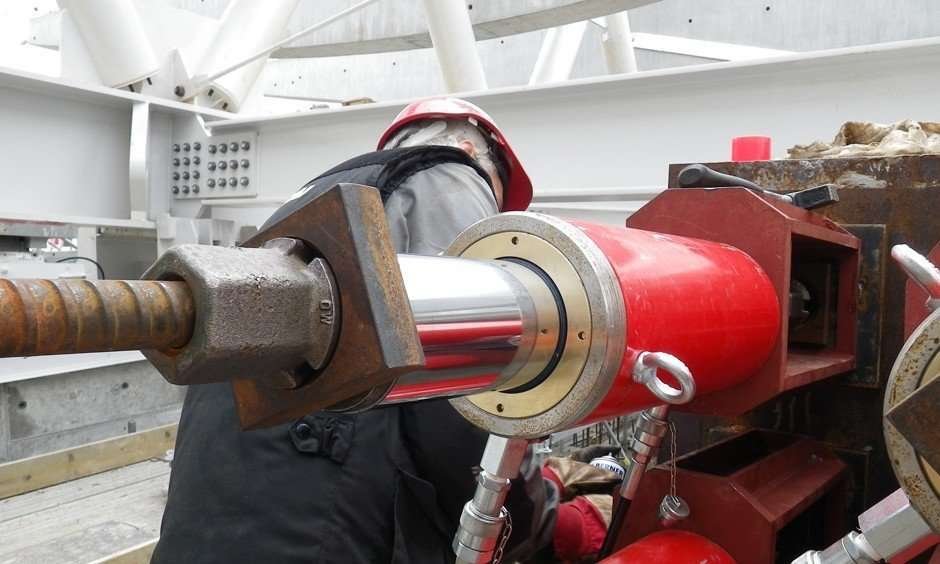

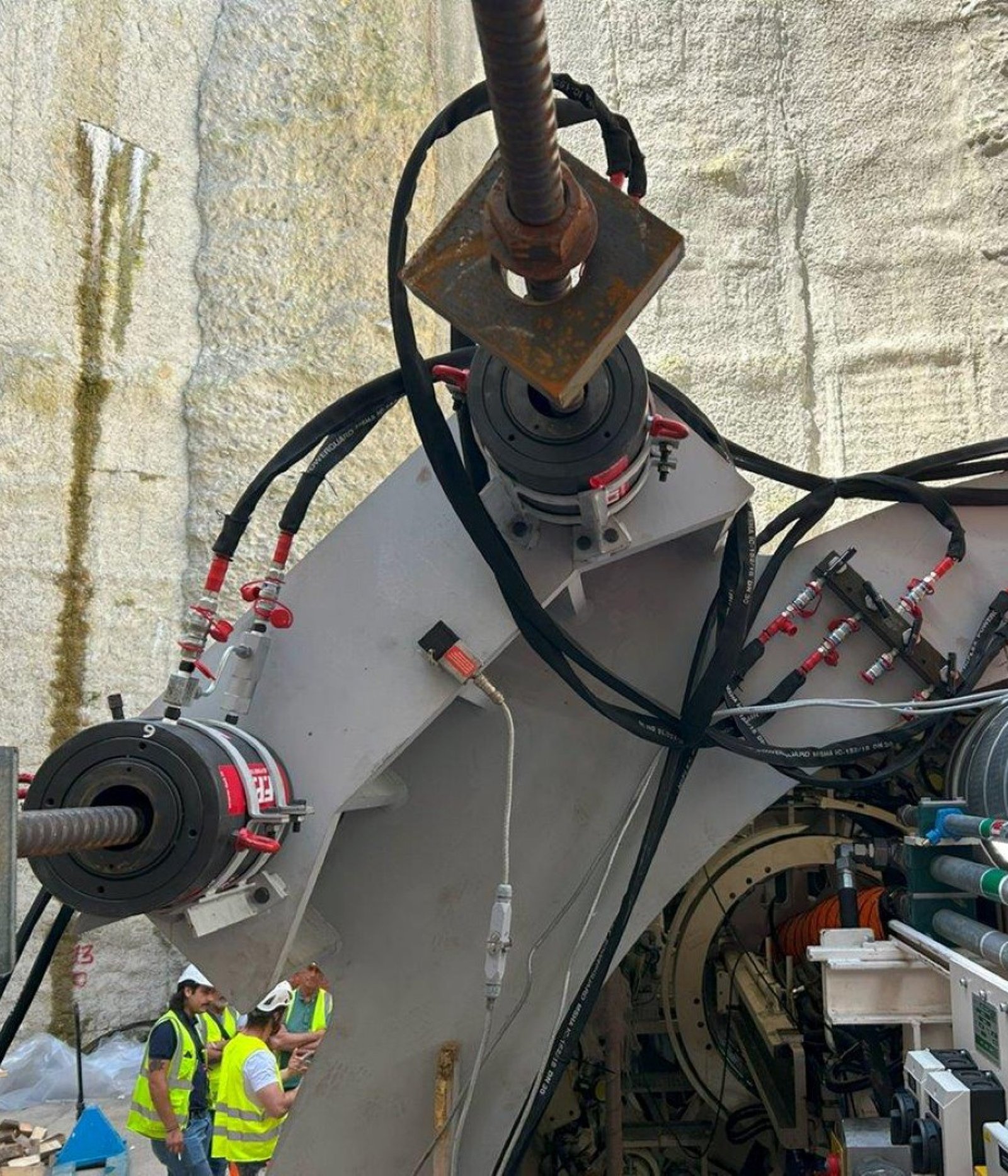

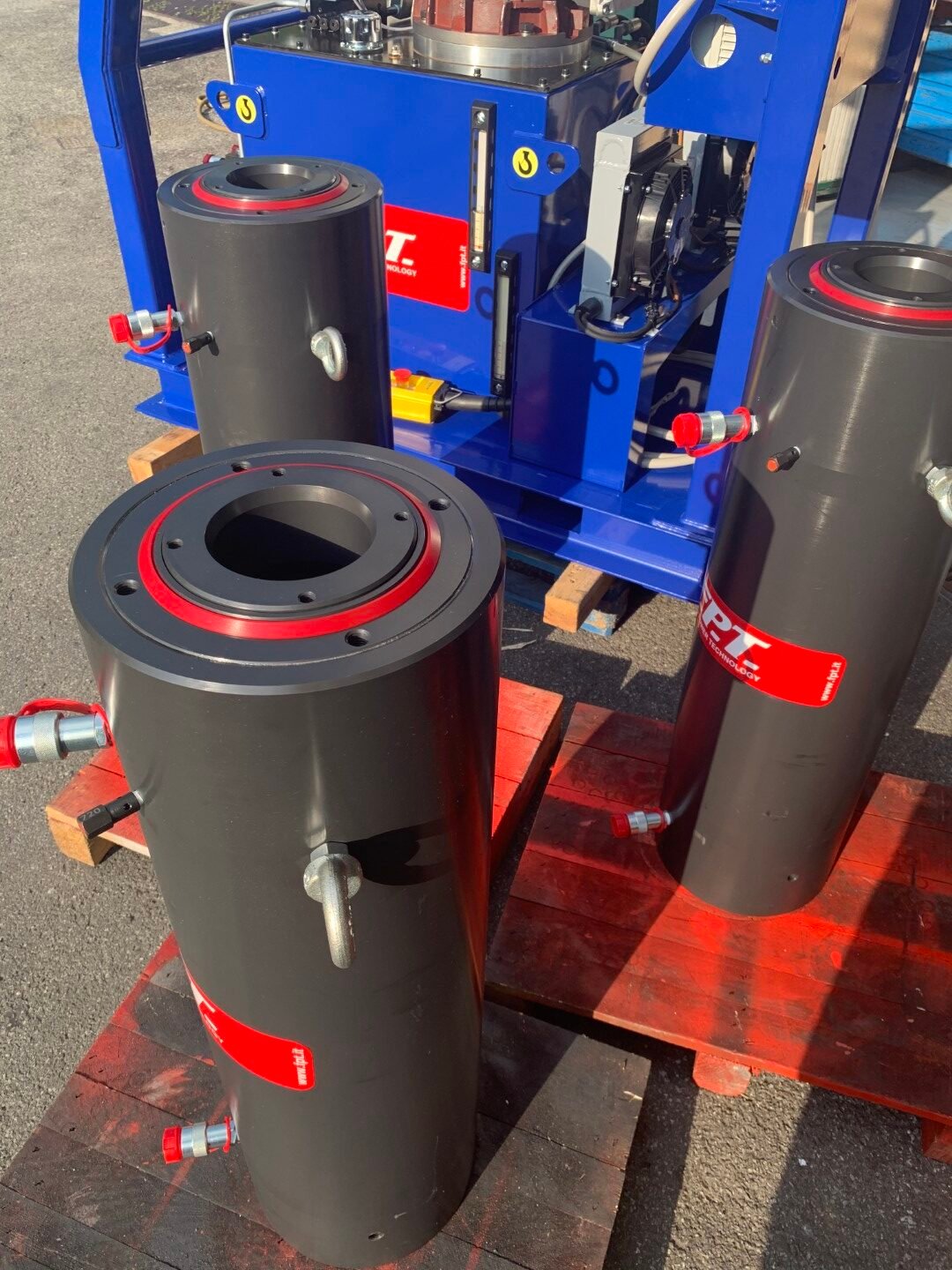

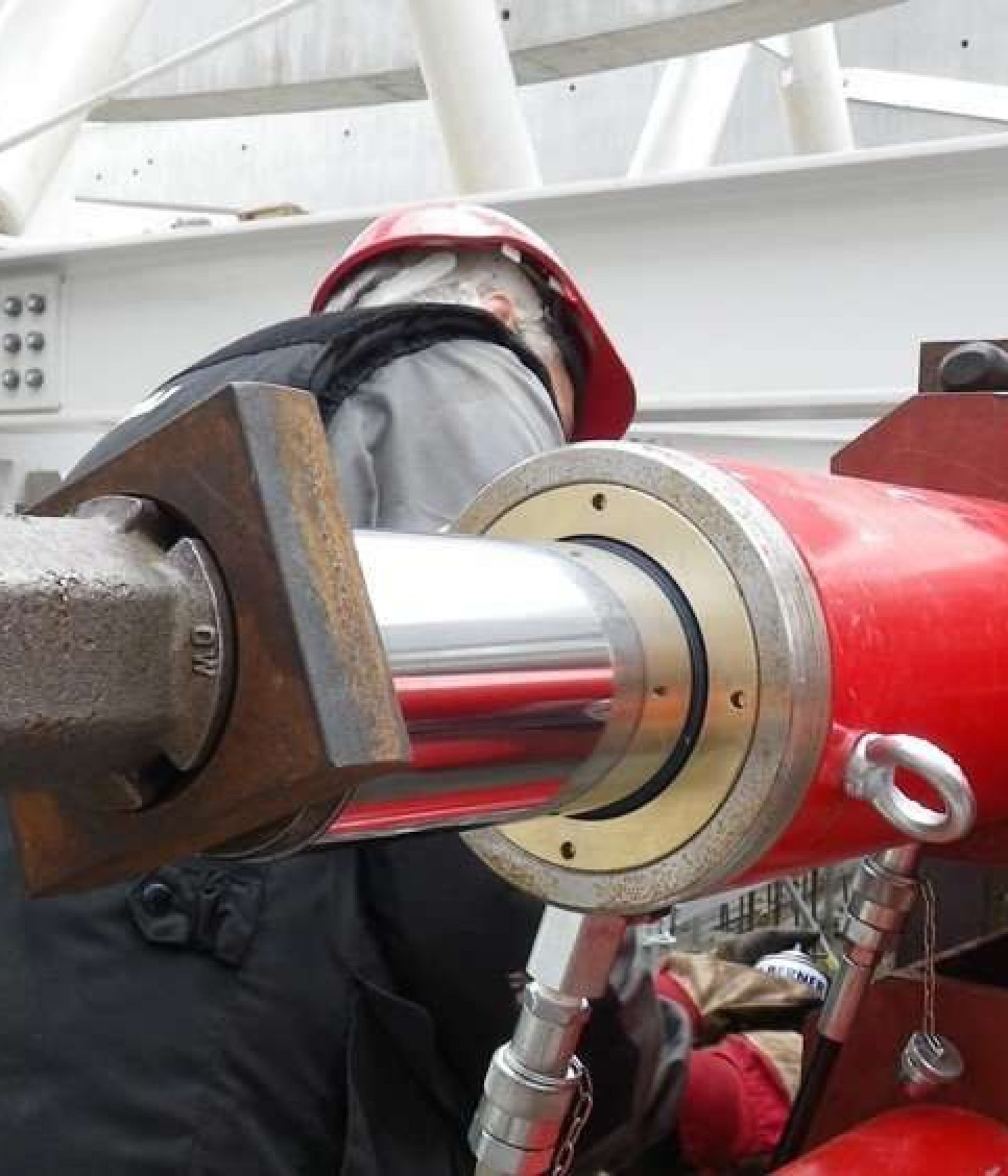

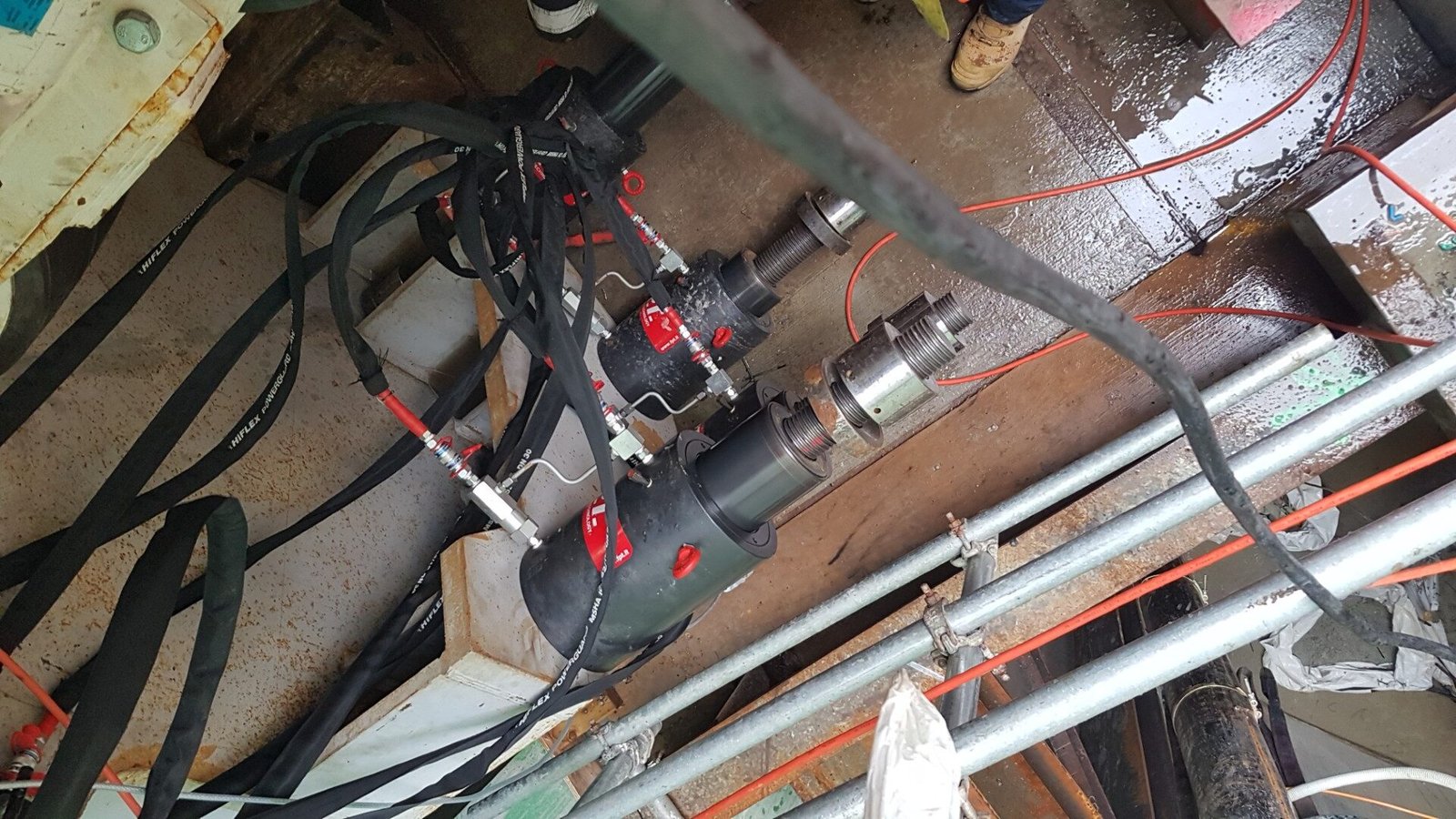

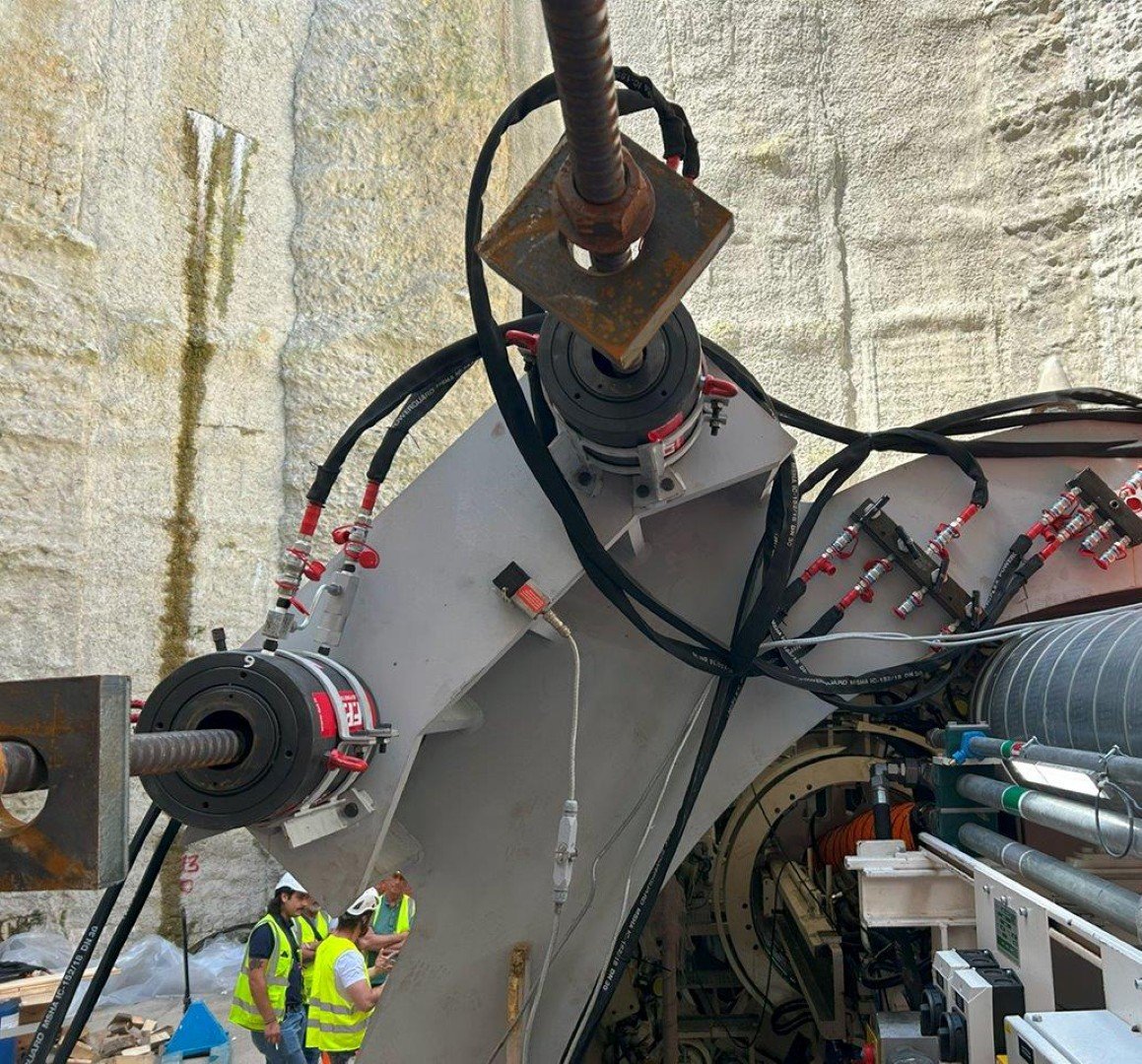

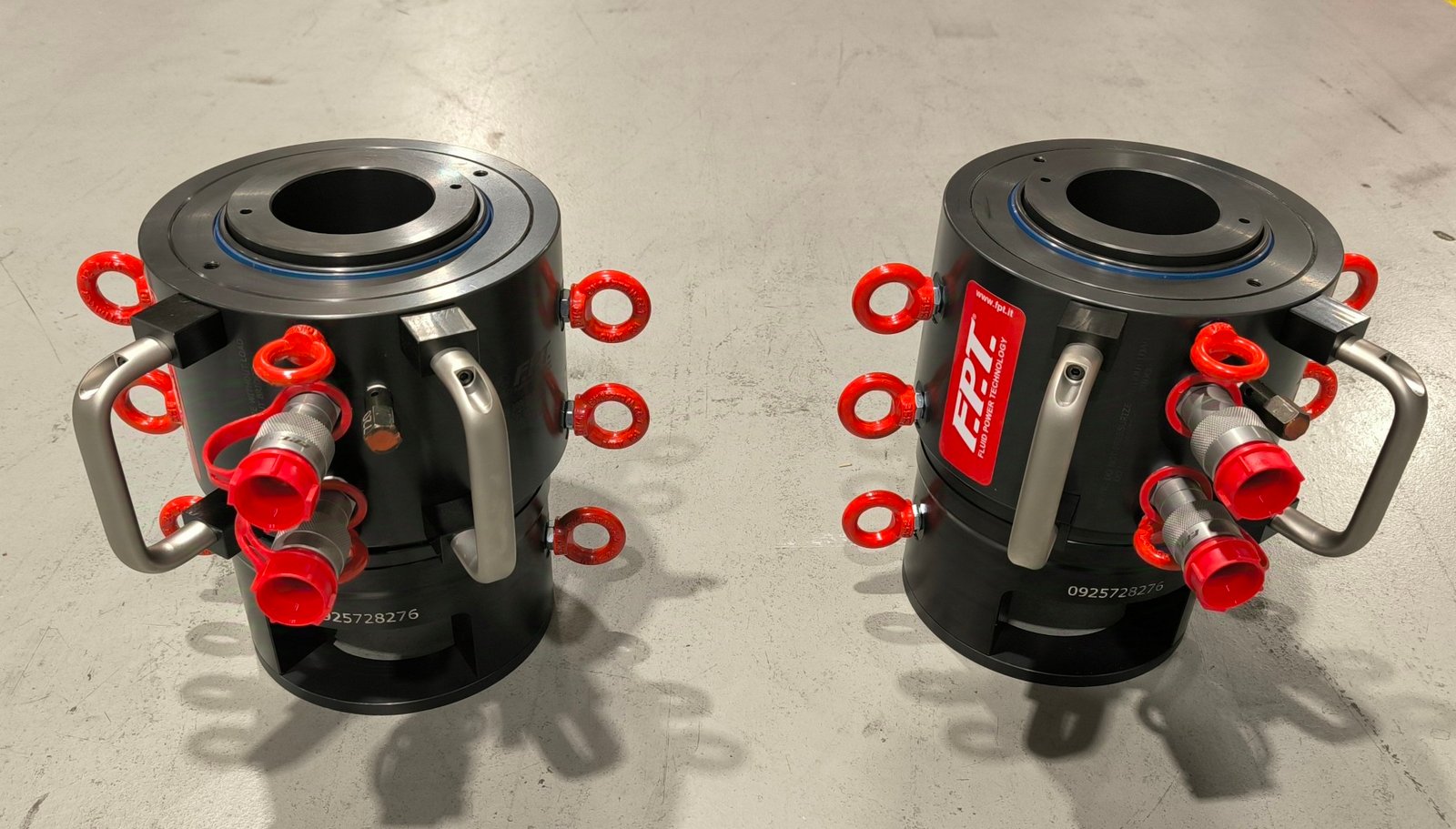

Double acting oil return hollow plunger hydraulic cylinders in high pressure. Pushing force from 30 to 150 tons with a stroke range from 50 mm to 260 mm. Designed for cable tensioning operations, tensioning bars, assembly or disassembly. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load and the end stroke ring increases safety for the operator by avoiding the extra stroke of the piston. Hydraulic jacks equipped with high strength gaskets for maximum durability up to 60° C, upon request it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use. Hollow plunger cylinders are equipped with a 3/8 “NPT female coupler equipped with an anti dust cap and can be secured to structures or machinery through the thread on the cylinder’s external body. Removable high resistance head and possibility of mounting a self-leveling head for a better distribution of the load to be lifted. External painting for maximum corrosion resistance or Nitox ONC treatment on all internal mechanical parts for maximum resistance to corrosion and wear. All models weighing up to 20 kg are equipped with lifting eyebolts. Sectors of use: steel mills, energy, industry, infrastructure, engineering and testing, mining, shipbuilding, offshore, oil & gas and transport. Possibility to design and produce custom made hydraulic cylinders on request, with dedicated geometries, performances and features. All models can be connected to different drive units such as hand pumps or electric, air, petrol pumps. A wide range of accessories such as hoses, valves and pressure gauges are available for the composition of the desired hydraulic circuit.
