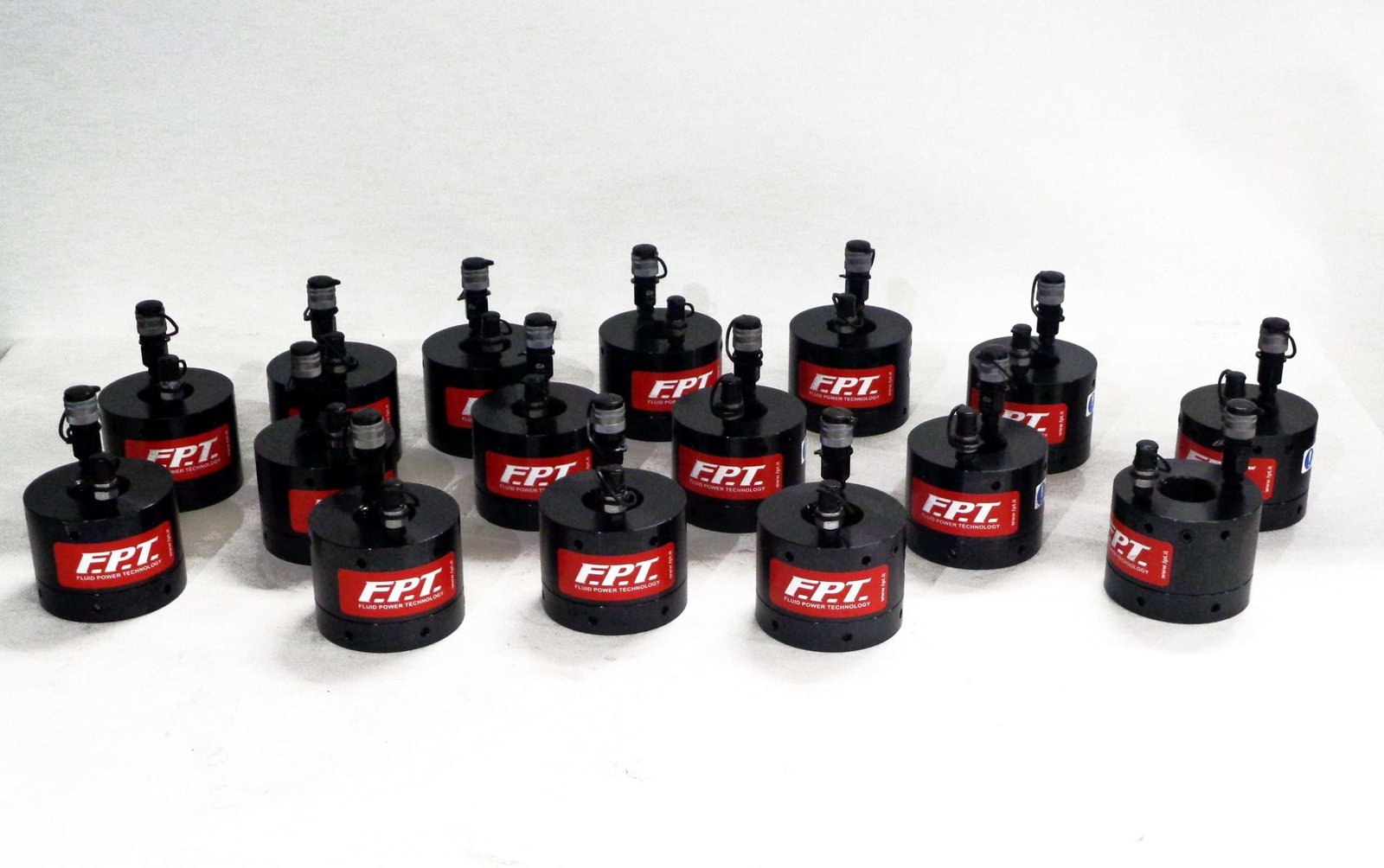

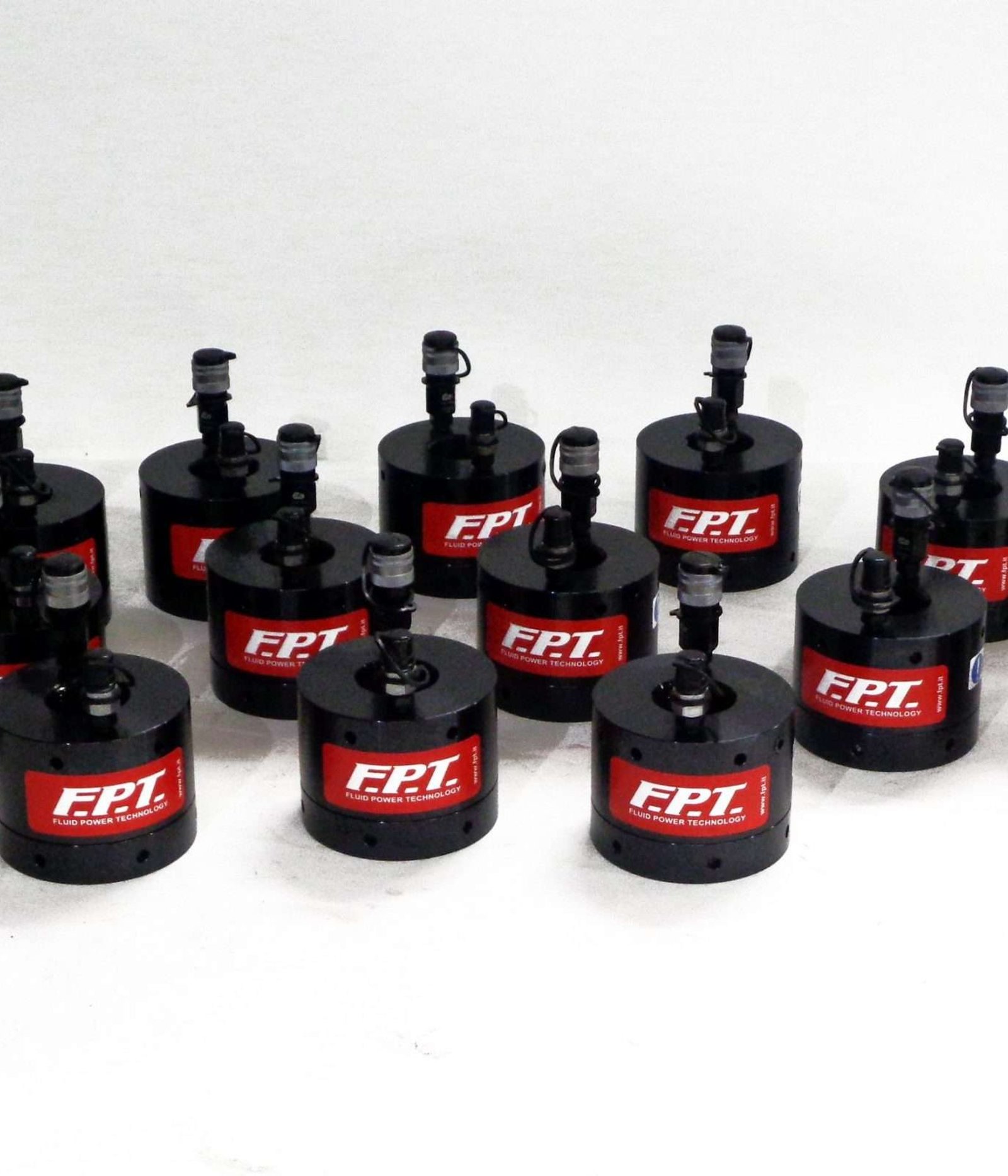

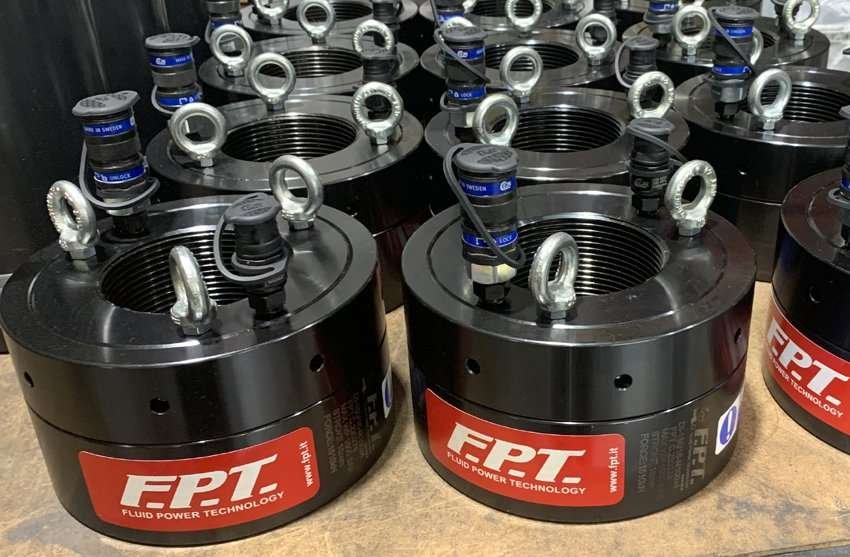

Hydraulic nuts top and bottom collar

DI Series

  • Ideal for demanding environments: Used where mechanical nuts are not suitable due to frequent maintenance, high temperatures, heavy vibrations, or other critical operating conditions.
  • High and precise preload: Designed for tightening large-diameter bolts with controlled, uniform, and highly accurate preload values.
  • Integrated hydraulic system: Each hydraulic nut incorporates an internal hydraulic jack, reducing tightening effort to the simple operation of a highpressure pump.
  • No torsional stress: Bolt tensioning is achieved without rotation of the nut, eliminating thread damage and torsional stresses.
  • Compact and versatile design: Suitable for confined spaces and available with upper or lower locking collar depending on application requirements.
  • Flexible configurations: Produced with various internal thread types (metric, trapezoidal, and others), as well as customized forces, pressures, and dimensions.

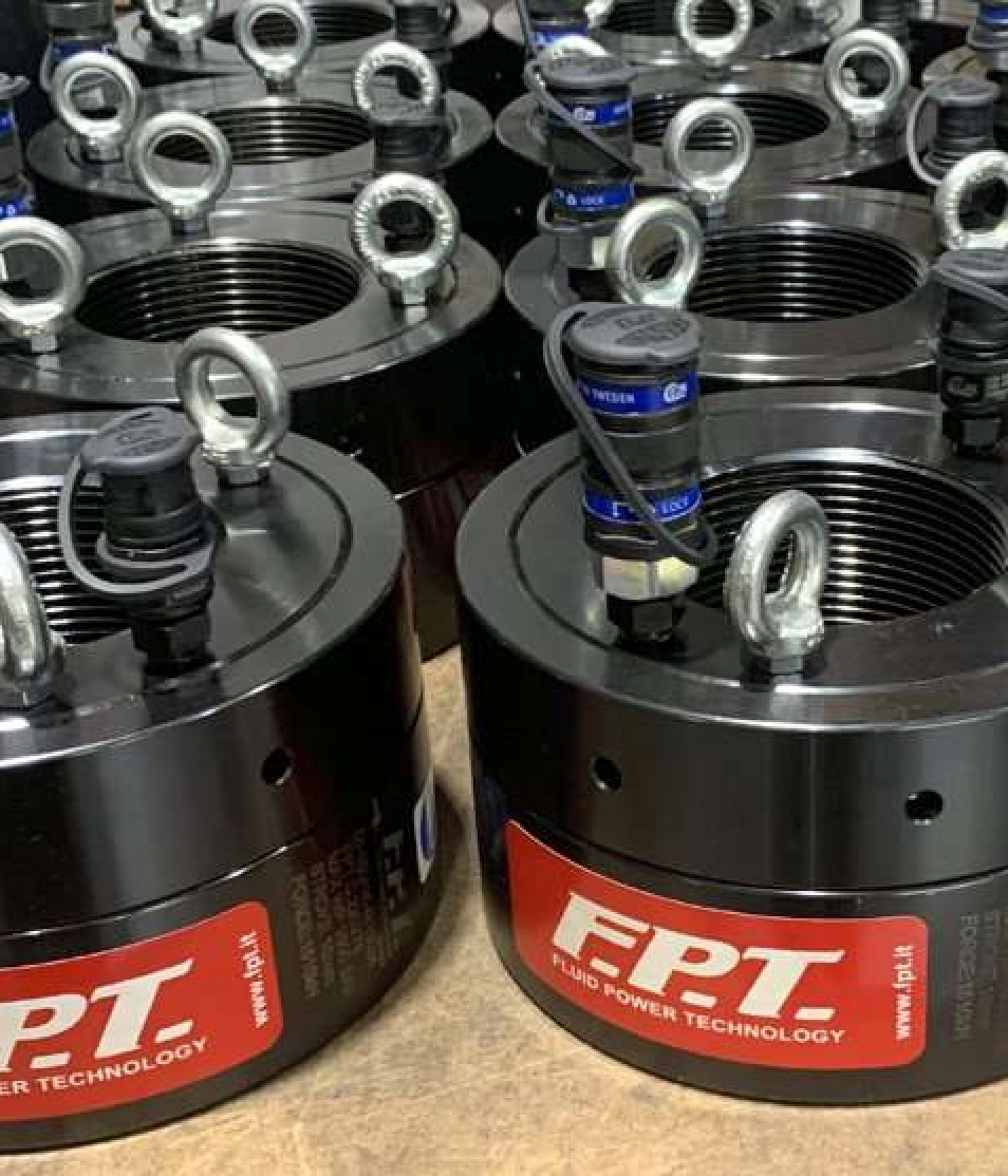

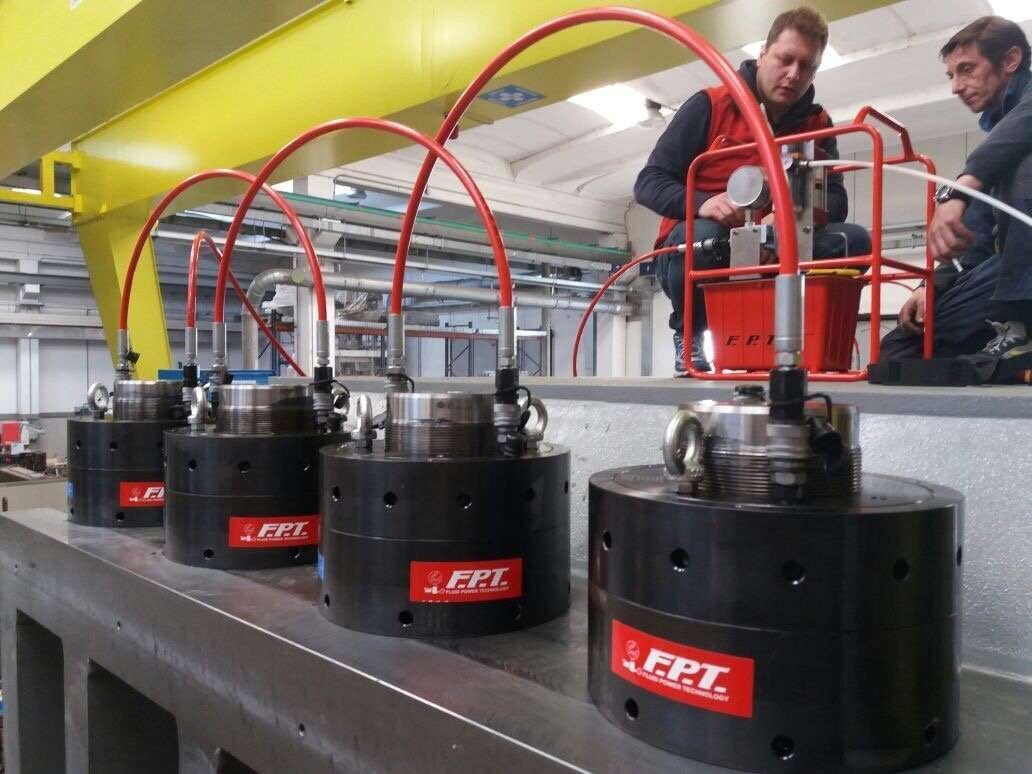

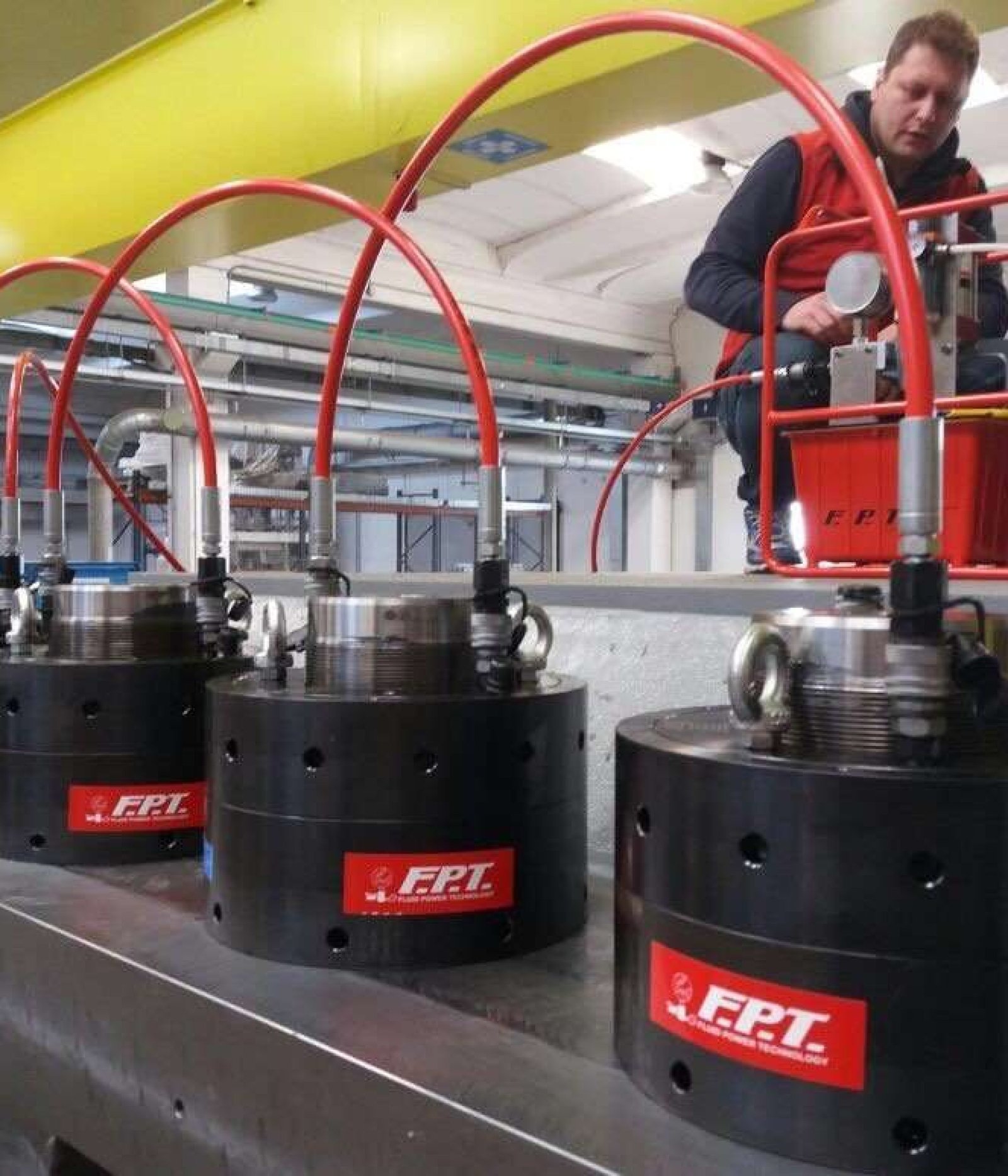

  • Multi-point synchronization: Quick couplers (male and female) can be installed for serial or simultaneous operation across multiple studs, ensuring uniform load distribution.
  • Hydraulic connections: Radial or axial connections are available depending on available installation space.
Hydraulic Nuts are a direct replacement for standard nuts: Hydraulic nuts replace conventional hexagonal or ring nuts and remain permanently installed on the application after tensioning. FPT – Fluid Power Technology is a manufacturer of hydraulic nuts, a product that replaces the existing hexagonal nuts to provide a punctual and uniform load at each bolted joint. They allow the tensioning of large diameter bolts with ease and with high and precise preloads. The tightening operation is carried out in narrow spaces and it is possible to eliminate the torsional stresses due to the damage to the thread. They can have upper or lower clamping collar, they are extremely compact, moreover it is possible to connect together any number of hydraulic nuts for simultaneous operation, guaranteeing uniform tensioning. They are used in all those applications where it is not possible to use a mechanical nut due to the need for continuous maintenance operations, for high temperatures or strong vibrations. The typical application is for the tightening of the columns of the presses, of the mining machinery and other mechanical applications. The hydraulic nuts can have various threads, forces, pressures and dimensions based on specific project requirements. Very high pressure hand pumps, electric or air hyadraulic pumps from 700 bar up to 3000 bar can compose and operate the hydraulic system. FPT is specialized in the design of custom made hydraulic bolting tools, which are produced according to customer requirements, designing and producing the tightening tool suitable for the customer’s application. Deep tradition in continuous renewal, strong specialization in engineering and design of new technical solutions, absolute quality of the products and effective after-sales and technical assistance service have made FPT a reference brand for special high pressure hydraulic systems based on specific customer needs.

Custom-made solutions
Designed and manufactured by FPT – Fluid Power Technology with a strong focus on quality, durability, and performance in highpressure bolting systems. Fully customizable design to meet specific customer requirements and application constraints.

Wide industrial applications.

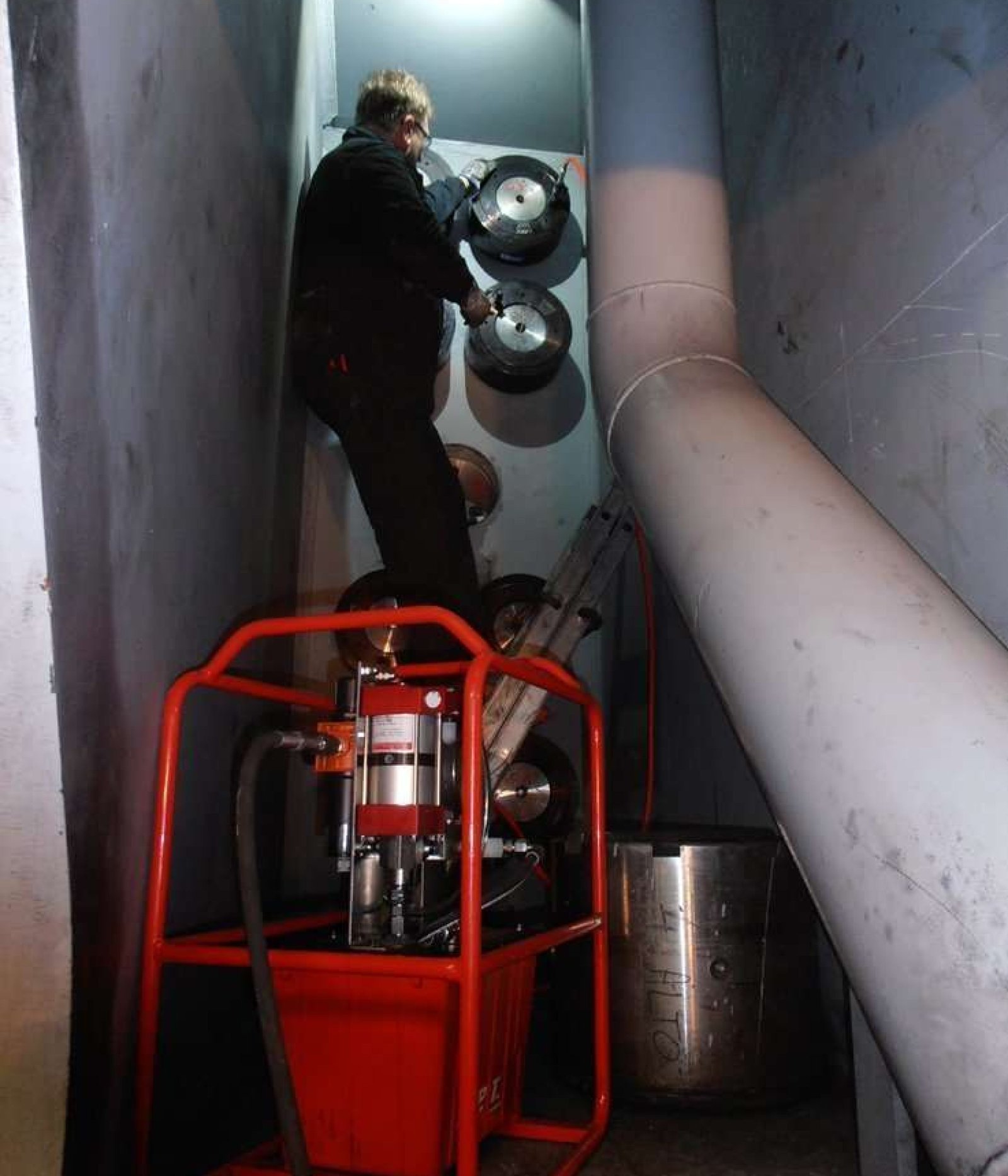

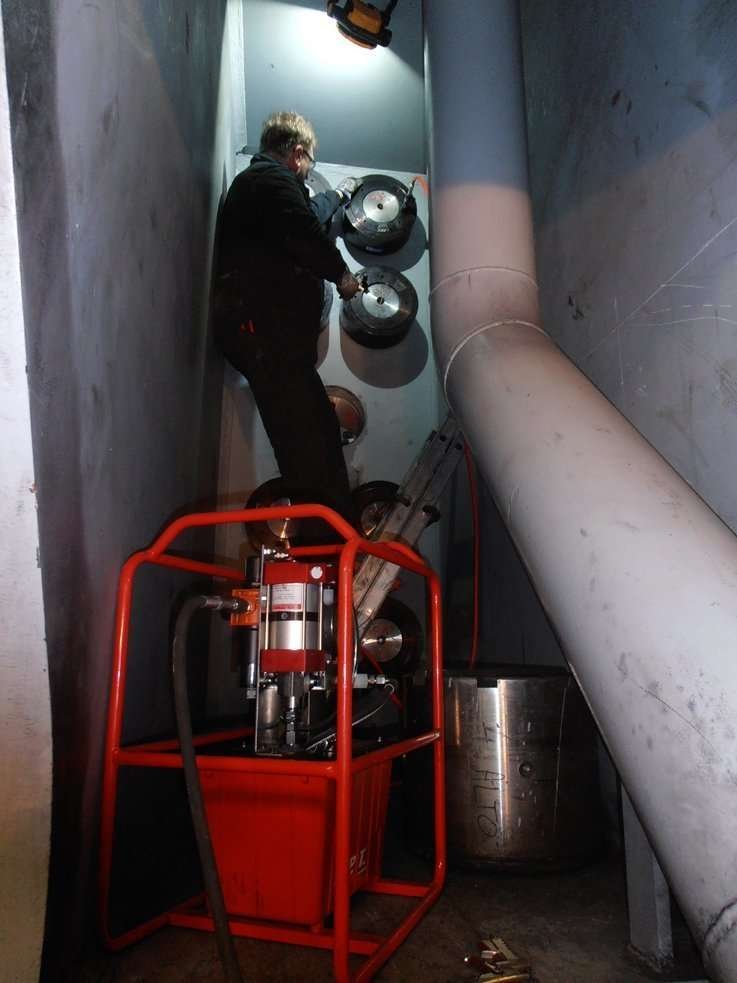

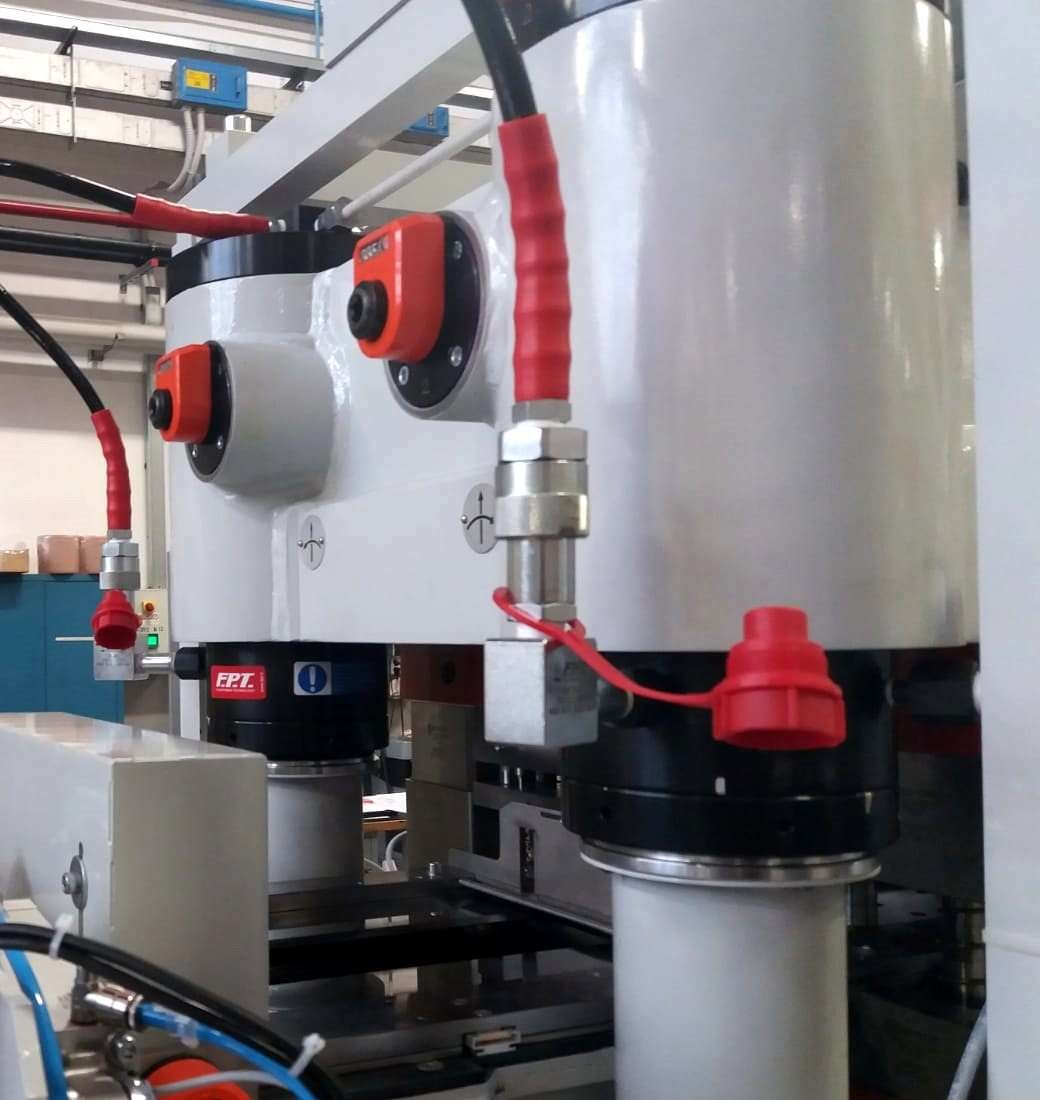

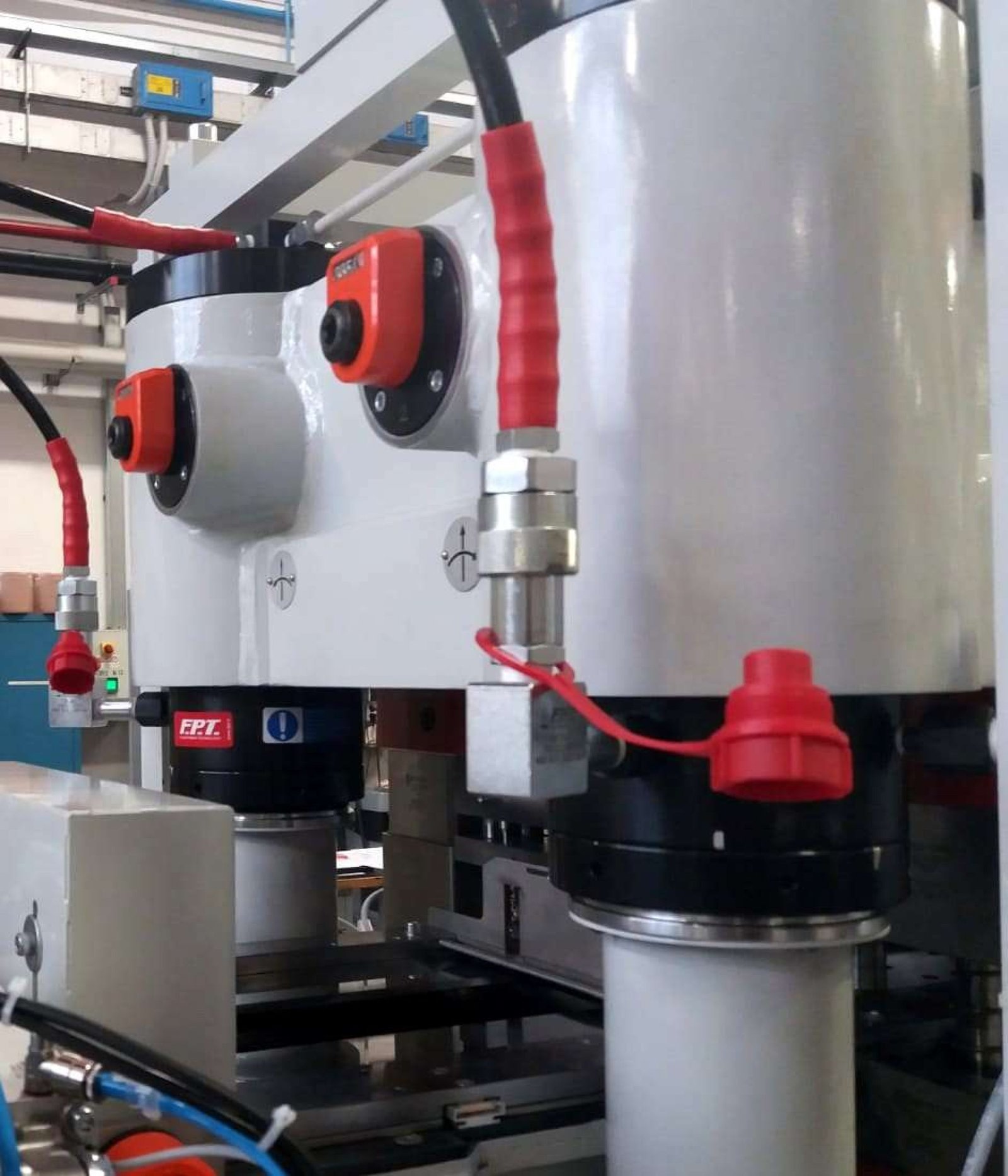

Commonly used in naval, steel, mechanical, mining, and heavy industrial sectors, including press columns and large machinery.

Choose the right pump for your application

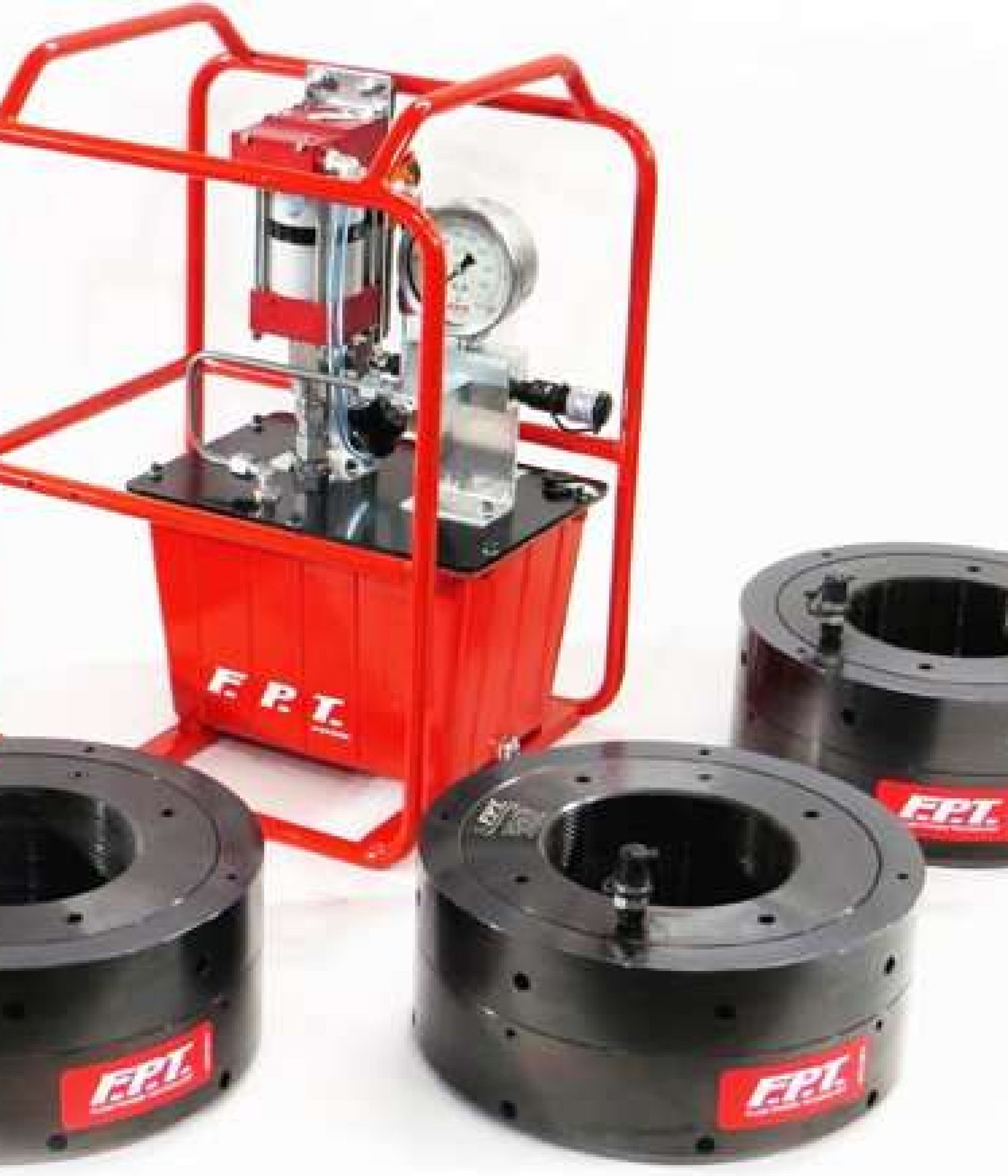

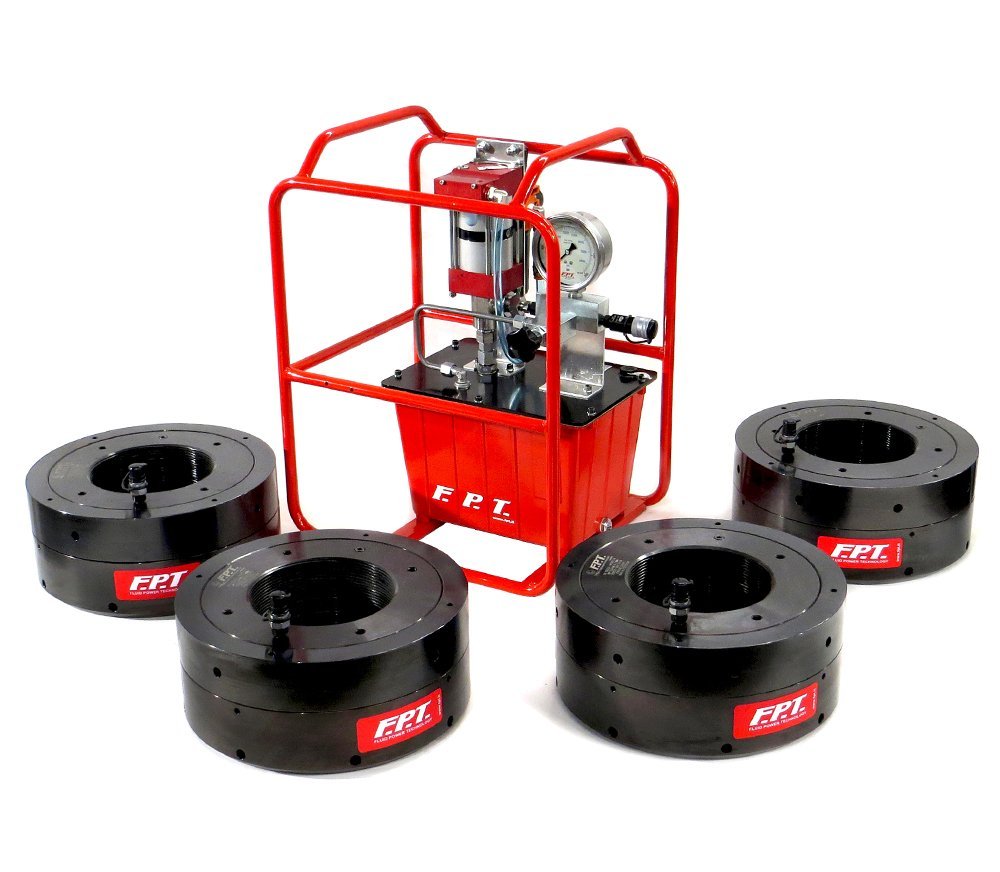

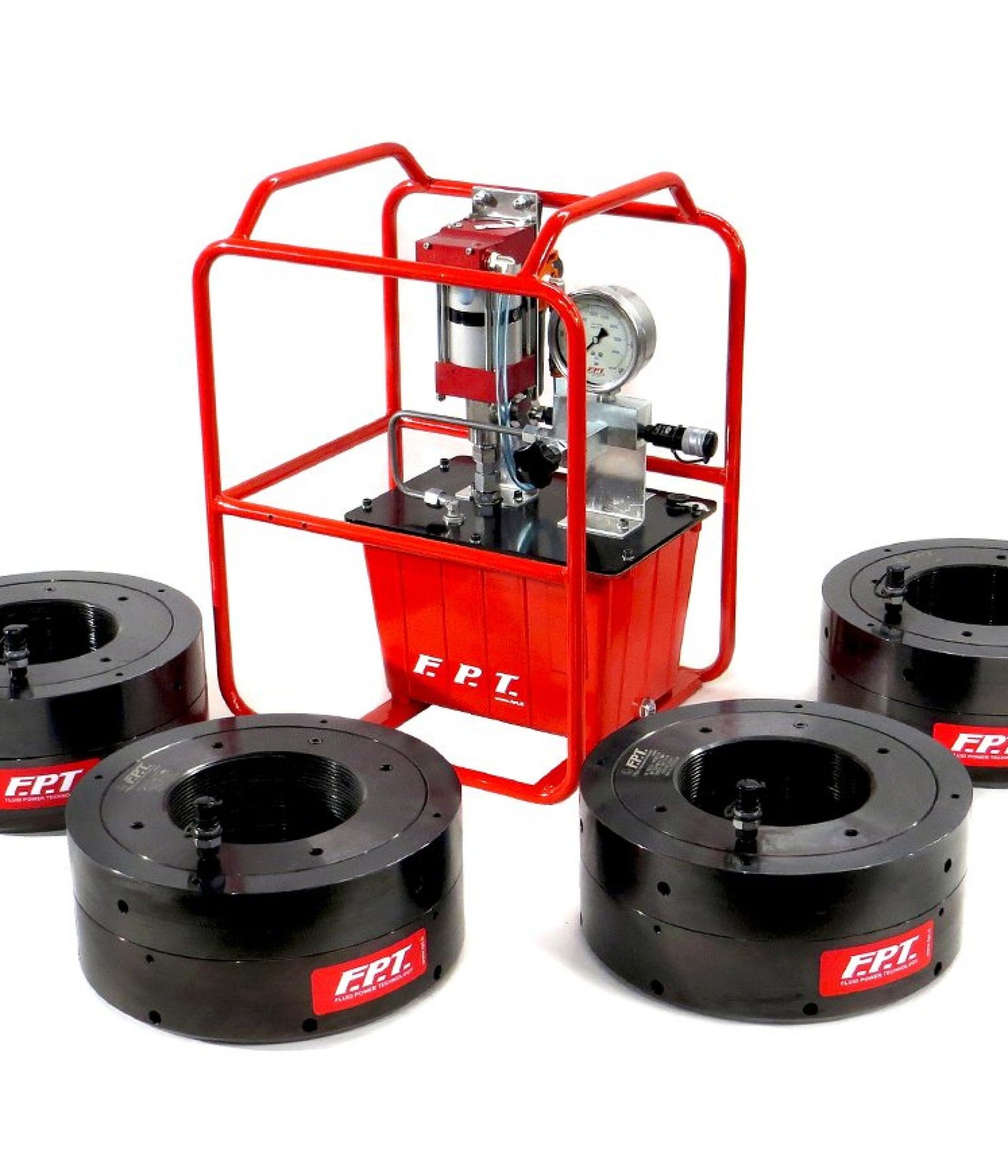

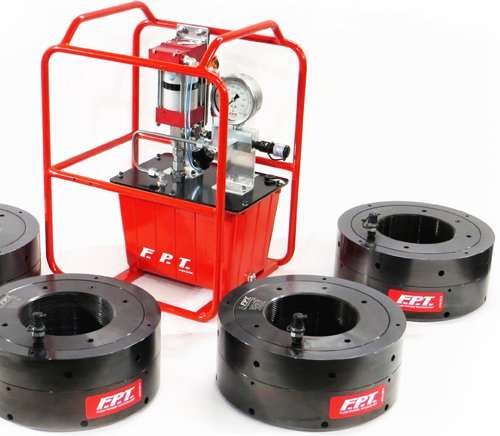

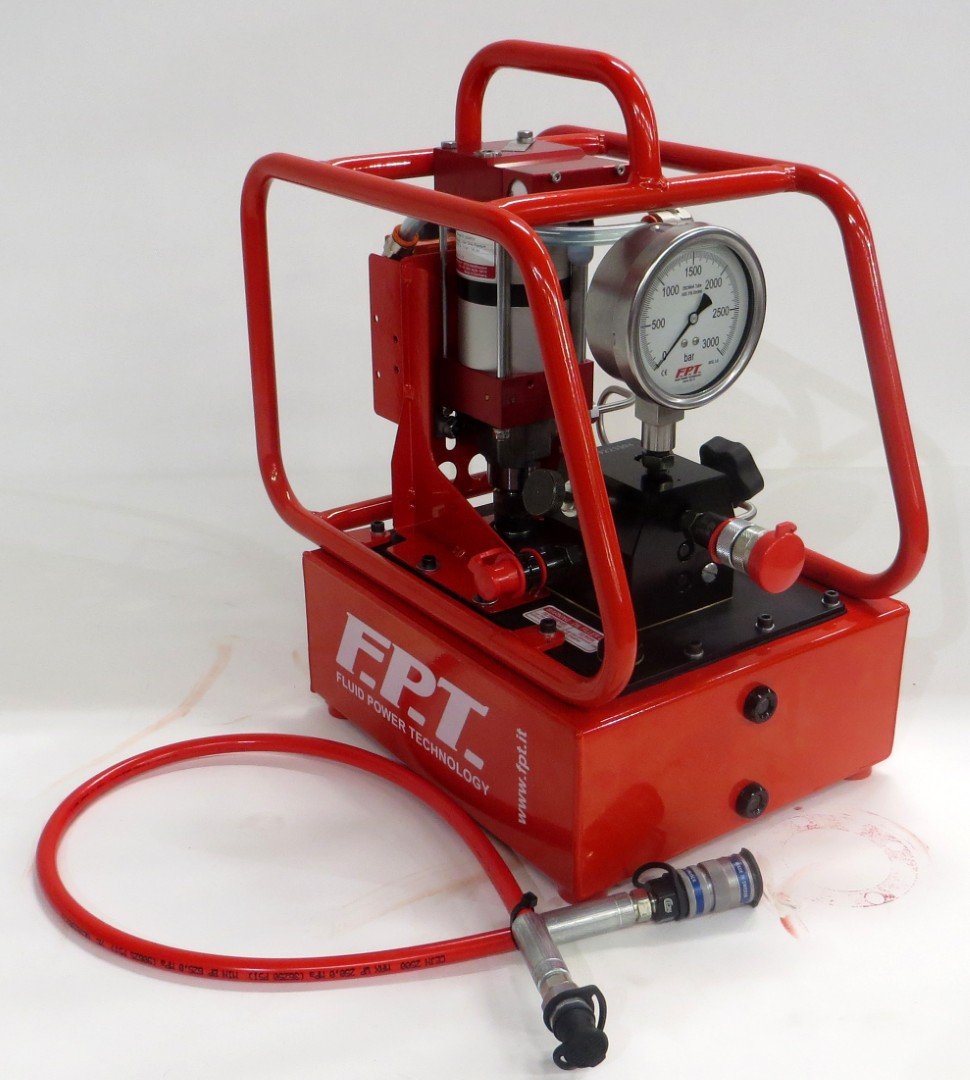

High-pressure system compatibility: suitable for manual, electric, or pneumatic hydraulic pumps operating in the 700 to 3000 bar range.



For further technical details and specifications, download the dedicated catalogue page for this product using the button below.
